Product Details:
|
| Steel: | Forged Chrome Steel,100Cr6, SUJ2,GCr15 | Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc61-67 | Surface: | Surface Finishment, Smooth Without Burr |
| Usage: | Ball Bearing, Bicycle, Automobile | Standard: | DIN, ASTM, AISI, JIS, AFN |
| Free Sample: | Available Provide For You | Product Name: | E52100 Chrome Steel Ball 44.98mm |
| High Light: | E52100 Solid Metal Spheres,45.04mm Solid Metal Spheres,45.06mm Ball Bearing Sphere |
||

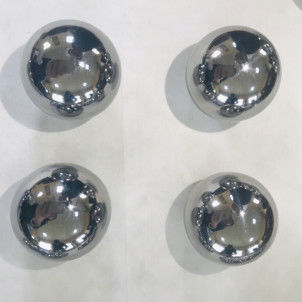

44.98mm(1.770866"),45.04mm,45.05mm,45.06mm,E52100,High chrome steel Balls for Ball Bearing
Introduction
GCr15 bearing steel ball, also known as chromium steel ball, is a kind of high carbon chromium bearing steel with low alloy content, good performance and the most widely used . After quenching and tempering, it has high hardness, good uniformity, good wear resistance and high contact fatigue property.
Steel has the characteristics of medium plasticity, low cutting performance, poor welding performance, high sensitivity to white spots, and high temper brittleness.
In addition, steel balls sizes of 30mm -82.55 mm are our company's main products used for large wind turbine bearings and slewing bearing.
Bearing balls are special highly spherical and smooth balls that are most commonly used in ball bearings, but are also used as components such as flywheel mechanisms. There are many different class of the ball. such as G3,G5,G10,G20,G28,G40,G60,G100 etc.
Our company's bearing steel balls are made of high-quality high-carbon chromium bearing steels GCr15 and GCr15SiMn. They are the best choice for various high-precision bearings.The best precision,make your bearing roll smoother.
Size range:
Ø 7.938mm – Ø 50 mm (GCr15,E52100 chrome steel ball)
Ø 50 mm – Ø 82.55 mm (GCr15SiMn chrome steel ball)
The many advantages of our company make us the supplier
• We own the broadest standard product offering of mechanical motion technologies in the industry.
• We can customize according to customer requiements.
• Choose us and gain access to over 20 years of global application experience in industries including packaging, factory automation, material handling, medical, clean energy, printing, automotive and machine tool, engineering machinery.
Choose us as your Precision Ball Supplier with the Most Complete Variety of Precision Balls, Ball Materials and Technologies.
Parameter
| Size | 44.94mm,44.95mm,44.96mm,44.97mm,44.98mm,44.99mm,45mm,45.01mm,45.02mm |
| material | Gcr15,AISI52100,100Cr6,SUJ2 |
| Precision | G40 |
| Application | automobile, ball bearing and also bearing,construction machinery |
| Special properties | 1. High precision |
| 2.excellent wear resistance | |
| 3. High hardness | |
| 4. Can be customized according to your needs | |
| 5. Can provide small and big size standard and non-standard steel ball. | |
| Service | can provide free samples for checked, inspect report |
| Delivery date | Normal have in stock within one week can be shipped. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
Grade and Tolerance
| precision / Grade |
Ball Diameter Tolerance Vdws(≤) µm |
Deviation from Spherical Form △Rs(≤) µm |
maximun surface roughness Ra(≤)µm |
lot diameter variation Dwl(≤) µm |
| G3 | 0.08 | 0.08 | 0.01 | 0.13 |
| G5 | 0.13 | 0.13 | 0.014 | 0.25 |
| G10 | 0.25 | 0.25 | 0.02 | 0.5 |
| G16 | 0.4 | 0.4 | 0.025 | 0.8 |
| G20 | 0.5 | 0.5 | 0.032 | 1 |
| G24 | 0.6 | 0.6 | 0.04 | 1.2 |
| G28 | 0.7 | 0.7 | 0.05 | 1.4 |
| G40 | 1 | 1 | 0.06 | 2 |
| G60 | 1.5 | 1.5 | 0.08 | 3 |
| G100 | 2.5 | 2.5 | 0.1 | 5 |
