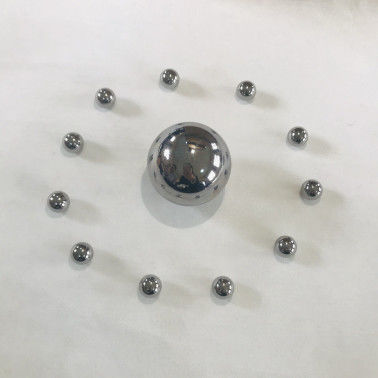

Corrosion Resistance 45mm Steel Ball G40 GCr15 For Wind Turbine Bearing

45.00mm(1.77165"), Polished Steel Balls For Wind Turbine Bering, G40

Product Details

The high-carbon chromium bearing steel is a high-carbon alloy steel with 1.40~1.65% chromium. It is characterized by a more uniform and stable structure after heat treatment, high hardness, high uniformity, good wear resistance, high contact fatigue strength, and good dimensional stability and corrosion resistance after annealing, its cutting performance is good and the price is relatively cheap. This steel can meet bearing requirements under normal working conditions.

Hardness

Our modern heat treatment equipment has a controlled atmosphere and temperature, which allows us to maintain the Rockwell hardness within the standard range during any production process and reach any specific hardness specified by the customer. The hardness of E52100 chrome steel balls is between HRC 60 and 67 according to requirements. The chromium steel balls are uniformly quenched and tempered across the entire diameter to achieve maximum strength and quality. The hardness of the ball measured on a parallel plane is controlled within the range of 60-66 HRC. Custom heat treatment can be used for special hardness and dimensional stability requirements.

High Quality Graded Hardened Chrome Steel Ball bearings made from Chromium GCr15 steel. Hardened to 60-67 Rockwell Scale equivalent to 700-900 HV (Vickers Scale) and are hardened all the way through the ball. These are the same hardened steel balls used to manufacture bearing assemblies and have a high duty and life cycle.

Material Characteristics

Mainly used in ball bearing design and various industrial applications. A vacuum degassed GCr15 chrome steel is used to obtain high-quality balls with excellent surface finish, through-hardness and high load capacity. Consumable electrode vacuum melting materials can also be provided.

Applicable Industries
Bearing balls are used in automotive applications, for semi-precision bearings, and in commercial applications.Other applications for steel bearing balls include bicycles, drawer slides, door locks.

GCr15 45mm group Bearing Manufacturing Machinery Chrome Steel Ball

The Slewing bearings are an important part of wind turbines. According to different installation positions, wind turbine bearings can be divided into main shaft bearings, yaw bearings and pitch bearings. The working environment is difficult and the maintenance costs are high. Therefore, wind turbine bearings have strict quality requirements for steel balls. We strictly follow the proprietary standards stipulated by the international steel technical standards, implement a standard management system to select raw materials, and use advanced equipment, first-class testing instruments and strict control procedures to ensure that our wind energy steel balls have excellent quality and extend your life.

Our Advantages

• Provides higher quality and durability, reducing replacement and maintenance cost.
• Our promise: you won’t find any defect,flats,pits,soft spots,and cuts.
• Cost-effective
• They are solid balls without magnetic but they can be attracted by magnet.
