Product Details:
|
| Material: | High Chrome Steel, 100Cr6,SUJ2,GCr15 | Ball Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Big Ball Bearing Such As Kinds Of Industries |
| Surface: | High Polished, Grinding, No Breakage | Advantage: | Complete Specfications, Good Toughness And Roundness |
| Free Samples: | The Free Samples Can Be Inspected | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| Highlight: | 45.04mm 2 Inch Metal Ball,GCr15 2 Inch Metal Ball,G40 2 Inch Metal Ball |
||

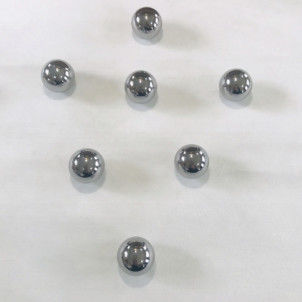

45.04mm(1.77323"), Polished Steel Balls For Wind Turbine Bering, G40
Description
Steel balls are important basic components, especially precision industrial steel balls, which play a huge role in the development of the national economy. Under some special conditions, steel balls of special materials are often needed to fulfill the functions required under different environments.
There are generally four types of steel ball production methods: forging, rolling, semi-solid forming and casting.
GCr15 steel is a representative steel grade of high-carbon chromium bearing steel with good overall performance. After quenching and tempering, the hardness is high and uniform, and the wear resistance and contact fatigue resistance are high. Good thermal workability. After spheroidizing annealing, it has good workability, but it is sensitive to the formation of white spots. Mainly used in the manufacture of steel balls, rollers and bushings on drive shafts such as internal combustion engines, electric locomotives, machine tools, tractors, steel rolling equipment, drilling rigs, railway vehicles and mining machinery.
GCr15
1. The residual copper content (melting analysis) of the steel for bearing steel pipes should not exceed 0.2%.
2. The oxygen content is measured on the billet or steel.
3. The sulfur content (melting analysis) of wire rod steel should not exceed 0.02%.
Applicable Industries
GCr15 bearing steel is widely used to manufacture spindle bearings, railway bearings,engine bearings, machine tools bearings, mining machinery bearings, general machinery bearings etc.
GCr15SiMn bearing steel is mainly used to manufacture thick wall bearings, such as large and extra large size bearings, used in heavy machinery and rolling mill machinery.
Chrome steel and other metal balls are manufactured using the following processes
Our Advantages
Precision: they are roundness, high hardness and high accuracy, surface no crack.
Tolerance: ball dimensional tolerance, Deviation from Spherical Form, lot diameter variation, maximun surface roughness meet the standard.
Price: Small MOQ with competitive price.
Time of delivery:Fast delivery based on quality guaranteed.
Detailed Information
| Product name | High Quality 2 inch Slewing Chrome Steel Balls |
| Size range | Ø 15.875 mm – Ø 50 mm (GCr15/SUJ2/100Cr6 Chrome Steel Balls) Ø 50 mm – Ø 80 mm(GCr15SiMn/SUJ3/100CrMn6 Chrome Steel Balls) |
| Quality grade | G40 for balls Ø39.688-65mm G60 for balls Ø 69.85-80mm |
| Hardness | GCr15 : Core hardness min HRC55 Surface to OD’S 15% depth hardness min HRC58 Surface Hardness min HRC61 GCr15SiMn:Core hardness min HRC55 Surface to OD’S 15% depth hardness min HRC58 Surface Hardness min HRC61 |
| Application | The High Quality 2 inch Slewing Chrome Steel Balls are mainly applied in slewing ring bearing for wind turbines,such as single/double row ball bearing,single cross roller bearing,three roller bearing,double row angular contact ball bearing. |
