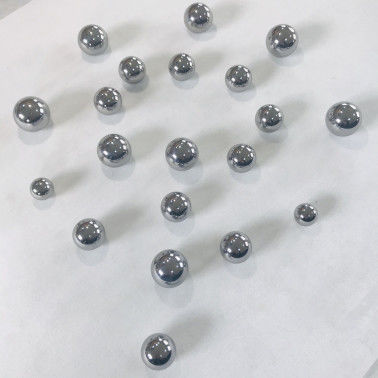

22.225mm 7/8" Forged Grinding Media Balls G10 G20 G16 HRC 54-60

22.225mm 7/8" Forged Grinding Media Balls G10 G20 G16 HRC 54-60
22.225mm 7/8" Forged Grinding Media Balls G10 G20 G16 HRC 54-60

Large Image :  22.225mm 7/8" Forged Grinding Media Balls G10 G20 G16 HRC 54-60

Product Details:
Place of Origin: China
Brand Name: XMEC
Certification: SGS,ISO9001
Model Number: 22.225mm(7/8")
Payment & Shipping Terms:
Minimum Order Quantity: 17280pcs
Price: FOB tianjin port, qingdao port
Packaging Details: Plastic bag+ cardon box+ wooden pallet
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 70 tons per month

22.225mm 7/8" Forged Grinding Media Balls G10 G20 G16 HRC 54-60

Description
Name: Stainless Steel Bearing Balls Stainless Steel Ball: 420/440
Grade: G10/G20/G16 Hardness: HRc52-62
Sample: Free Supply For You Surface Treatment: Mirror Polished
Service: OEM, ODM Application: Bearing, Seals, Aerosol Valves
High Light:

22.225mm Forged Grinding Media Balls

,

G16 Forged Grinding Media Balls

,

HRC 54 Forged Grinding Media Balls

22.225mm(7/8"), Hot Sale High Quality Stainless Steel Metal Ball For Bearing

Introduction



Profile
AISI 420 stainless steel balls demonstrate good wear resistance and hardness. it has slightly lower hardness and greater corrosion resistance, when compared with 440C.



Corrosion resistance
Stainless steel balls have excellent corrosion resistance in mild atmosphere, fresh water, steam, blood, ammonia, petroleum products and mild acidic environments.



Hardness
Rockwell C 48-52 is measured on parallel plates.



Ball size
The size ranges from 1.5mm to 50.8mm in grades 25 through 1000..



We are a multinational supplier of 420 stainless steel balls for applications include grinding media and industrial equipment.
Our design engineers are one of the most knowledgeable in the industry, and our ability to manufacture on both sides of the globe gives our customers a substantial advantage in cost and flexibility. and can provide fast turnaround to meet strict delivery requirements.



Carbon Steel balls, Stainless Steel Balls, Chrome Steel Balls and Grinding Balls are the main products, which range varies from
0.5mm to 120mm and includes metric and inch sizes, standard ones, oversize and under size. Applicable for industrial usage such as hardware, bearing, wheels, bicycles, toys and chemistry, military ect. We are now the leading manufacturers of semi-precision balls from Grade 10 to Grade 2000 in China. And a regular supplier to some prominent companies all over the globe.


Details



Product name forged solid stainless steel ball for bearing
Meterial AISI 420C/ SUS 420C
Size Ф0.3mm– Ф80mm
Other size Customized
Surface treatment Mirror polished
Grade  G10- G1000
Hardness HRC 54-60



Material Steel grade Density(kg/dm3) Hardness

Stainless steel ball

Not hardened

304 / 304L ball 7,95 25-39 HRC
316 / 316L ball 7,95 25-39 HRC
430 / 430F ball 7,73 75-95 HRB
904 ball 7,98 65-95 HRB

Stainless steel ball

Hardened

420C ball 7,70 52-60 HRC
440C ball 7,75 58-64 HRC



AISI 420 Stainless Steel Balls Specifications



Carbon Chromium Manganese Phosphorus Sulfur Silicon
0.36-0.48% 12% – 14% 1.00% 0.04% 0.03% 1.0%
