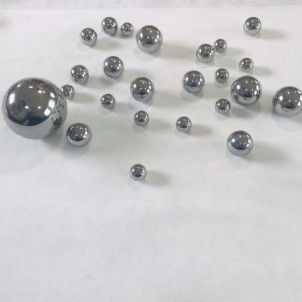

Heat Treated Bearing Steel Ball for Precision Ball Bearing

High chrome steel ball introduction:

GCr15SiMn steel is a high-carbon, high-chromium bearing steel, which has higher wear resistance and hardenability than GCr15 steel. The critical quenching diameter in oil is 90~110mm (volume fraction of 50% martensite). After oil quenching at 840°C, tempering at 350°C, and then light quenching, the surface hardness is as high as 1096HV, and the depth of the hardened layer can reach 1mm. In view of the insufficiency of the heat treatment process of the forming roller, the non-martensitic transformation occurs by pre-cooling at the thin edge to produce troostite or sorbite, which enhances toughness, reduces stress, and then quenches as a whole to meet the process requirements.

Features:

• Product Name: Chrome Steel Bearing Balls
• Tolerance: Meet The Standards ISO3290
• Application: Precision Ball Bearing, Automobile, Power industry
• Hardness: HRc51-57,HRc61-67,
• Grade: G10,G20,G28,G40,G60,G100
• Packaging: Carton and Pallet
• Features: Excellent Wear, Grinding Ball, Bearing Steel Ball, Corosion Resistance

Applications:

XMEC Chrome Steel Bearing Balls are designed for applications requiring excellent wear and precision ball bearing. With various sizes ranging from 22.225mm,25.4mm,28.575mm to 80mm, these bearing balls are made of high-quality chrome steel. They meet the standards of tolerance and surface finish, providing smooth operation. Moreover, they have a long lifetime and are ideal for use in slewing ring bearing. Affordable and reliable, these chrome steel bearing balls are available in carton and pallet packaging.

These Chrome Steel Balls have excellent surface quality. They offer superior wear resistance, high hardness and high load bearing capacity as a result of through-hardening. Most importantly, we can customize our products to suit various needs of our customers. Based on customer’s requirement, the steel balls could be produced according to China Standard GB/T 308, International Standard ISO 3290, America Standard ANSI/ABMA, Germany Standard DIN 5401, Japan Standard JIS B 1501 etc.
