Product Details:
|
| Material: | GCr15,52100,SUJ2,100Cr6 | Hardness: | HRc62-67 |
|---|---|---|---|
| Surface: | Lapping, Polished | Grade: | G20 |
| Application: | Kinds Of Ball Bearings And Orther Equipment And Industires | Feature: | High Precision, High Hardness, Good Wear Resistance, No Breakage |
| Sample: | Available | Service: | OEM, Customized Service |
| Tolerance: | Vdws 0.5µm, △Rph 0.5µm, Ra 0.032µm, Dwl 1.0µm | ||
| High Light: | 25.4mm 1 Inch Steel Ball Bearings,25.4 mm Bearing Steel Ball,Gcr15 Bearing Steel Ball |
||

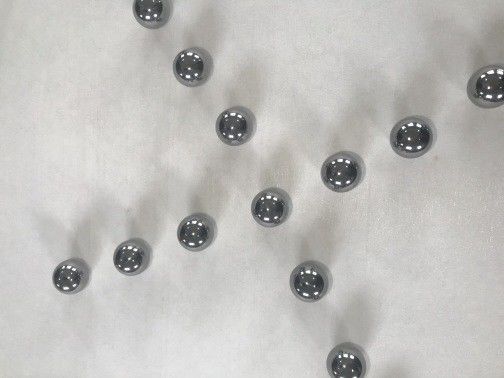

25.4mm(1 Inch) Gcr15 High Precision Chrome Steel Bearing Balls, HRc 62-67
Description
Chrome (GCr15,SUJ2,52100,100Cr6) is a universal material for many applications,also called bearing steel balls, is a kind of high carbon chromium bearing steel with low alloy content, have good superior performance and excellent wear characteristics,resistance to deformation,high load bearing capacity and high contact fatigue performance after quenching and tempering.
Chrome balls are manufactured from the highest quality chrome alloy steel and through-hardened for maximum strength and service life. Applications that are ideal for chrome balls include tumbling media, ball bearings,wind turbine bearing, linear motion components. most widely used in various industires.
Although these chromium steel balls have good rust resistance, but it is recommended to use a dry cloth to wipe clean after use and apply a layer of oil, so that they have better rust resistance, to extend their service life.
Besides the standard size of 25.4mm(1"), we produced the non-standard sizerange, such as 25.37mm, 25.38mm, 25.39mm, 25.41mm,25.42mm, 25.43mm and other material like stainless steel, chrome steel also available.
Our products enjoy a highly appreciated and satisfiied among our customers. Most importantly, we can customize our products to suit various needs of our customers. Based on customer’s requirement, the steel balls could be produced according to China Standard GB/T 308, International Standard ISO 3290, America Standard ANSI/ABMA, Germany Standard DIN, Japan Standard JIS B etc.
Parameter
| Ball Diameter | Grade | Hardness | Material |
| 1" (25.4mm) | G20 | HRc 62-67 | Gcr15(100Cr6,52100) |
Description of Production
| Size | 22.225mm,25.4mm,28.575mm,31.75mm,34.925mm,38.1mm,39.688mm |
| material | Gcr15,52100,100Cr6,SUJ2 |
| Precision | G3,G5,G10,G16,G20,G28,G40,G60,G100 |
| Application | automobile, electric machine, ball bearing and also bearing |
| Details | Deep groove ball bearings are most widely used and is the largest production, most widely used of a kind of bearings. It is mainly used to bear radial load, but also bear certain axial load. When the radial clearance of the bearing increases, the function of the angular contact bearing can withstand larger axial loads. |
| Special properties | 1. High accuracy |
| 2. smooth surface | |
| 3. high hardness | |
| 4. Can be customized according to your needs | |
| 5. Can provide small and big size standard and non-standard steel ball. | |
| Service | OEM & ODM service |
| Delivery date | Normal have in stock within one week can be shipped. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% TT |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
