Product Details:
|
| Material: | High Chrome Steel, 100Cr6,SUJ2 | Ball Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Big Ball Bearing Such As Kinds Of Industries |
| Surface: | High Polished, Grinding, No Breakage | Advantage: | Complete Specfications, Good Toughness And Roundness |
| Free Samples: | The Free Samples Can Be Inspected | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| Highlight: | 50.01mm Large Steel Balls,50.01mm Solid Metal Ball,100Cr6 Solid Metal Ball |
||

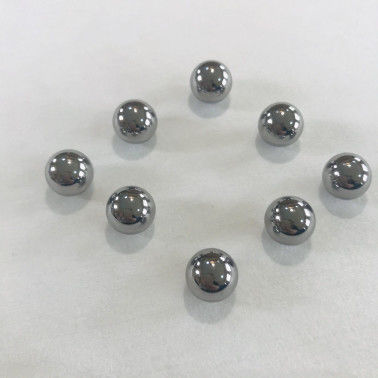

50.01mm(1.96890"), Large Solid Steel Balls For Big Bearing, G40
Product Details
High-carbon chromium bearing steel refers to high-carbon alloy steel with a chromium content of 1.40-1.65%. Its feature are the microstructure after heat treatment is relatively uniform and stable, good wear resistance, high stress fatigue strength, good dimensional stability and wear resistance.
This type of steel can meet the processing requirements under general working conditions. The brand numbers of ordinary high-carbon chromium bearing steel are GCr15 and GCr15SiMn. The performance of these two types of bearings is basically the same. But the hardenability of GCr15SiMn is better than GCr15, so GCr15SiMn is used for relatively large bearing parts.
Because GCr15SiMn has high crack sensitivity and low impact resistance, it cannot fully meet the requirements for thick-walled bearings and mine bearings. Therefore, the railway department does not allow the use of CGr15SiMn on passenger car bearings. It is also limited to thick-wall rolling mills and mining machinery under large compact loads.
Our steel balls are used in various industries such as Oil patch, Automotive, Agricultural and Food Applications, Material Handling, Energy Sector and bearings etc.
We are a supplier of balls for the wind turbine market. The most common steel ball use in the energy sector is in the crucial pitch and yaw bearings that give wind turbines their motion.
We are a major supplier to the oil production industry. We supply S-2 rockbit tool steel balls for down-hole drilling and for use in mud motors.
We are a key supplier of 52100 chrome, carbon, and stainless steel precision, and non-precision balls for applications involving industrial, automotive and commercial motion devices, such as race bearings, sliding doors, furniture, water pumps, cut off-valves, and even appliances.
We mainly produce chrome steel with sizes ranging from 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
Most importantly, we can customize products to meet the various needs of customers.
The surface of our chrome steel balls is extremely precise and smooth, ensuring that you will not find any defects such as flatness, dents, soft spots and cuts.
Complete quality and material certifications by lot number are available for all products we sell. We proudly offer:
· Modern process engineering
· A commitment to excellence amongst our staff and manufacturers
· Constant control throughout every stage of production, from the manufacturing side to sales and operations.
Detailed Information
| Size | 50.01mm,50.02mm,50.03mm,50.04mm,50.05mm,50.06mm |
| material | Gcr15,AISI52100,100Cr6,SUJ2 |
| Precision | G40 |
| Application | slewing ring bearing and also ball bearing,engineering machinery |
| Special properties | 1. High accuracy |
| 2. no defects of surface | |
| 3. high hardness | |
| 4. Can be produced according customer requirement | |
| 5. Special types of balls supplied. | |
| Service | can provide free samples for checked, quantity and quality assured |
| Lead time |
Normal have in stock within one week can be shipped. It will take about 20 to 30 days can be shipped out of stock or depending on the order q'ty. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
Grade and Hardness
| Ball Diameter | Grade | Hardness | Material |
| 50.01mm(1.96890") | G40 | HRc 60-67 | GCr15,100Cr6,SUJ2,52100 |
Advantage
Precision: they are roundness, high hardness and high accuracy, surface no crack.
Tolerance: ball dimensional tolerance, Deviation from Spherical Form, lot diameter variation, maximun surface roughness meet the standard.
Price: Small MOQ with competitive price.
Time of delivery:Fast delivery based on quality guaranteed.
| Precision / Grade |
Ball Diameter Tolerance Vdws(≤) µm |
Deviation from Spherical Form △Rs(≤) µm |
Maximun surface roughness Ra(≤)µm |
Lot diameter variation Dwl(≤) µm |
| G40 | 1.0 | 1.0 | 0.06 | 2 |
FAQ
Q: How about production time?
A: The steel balls are in stock can be shipped around one week. otherwise,it takes about 20-30 days.
Q: Do you provide the samples?
A: Yes, small quantity of free samples could be provided.
Q, Our packages?
A: Usually, we will be plastic bag into carton box, then packed in plywood pallets, it can also be customized.
