Product Details:
|
| Material: | Forged Chrome Steel, E52100, 100Cr6, | Grade: | G40 |
|---|---|---|---|
| Hardness: | HRc61-67 | Surface: | Lapping, Smooth Without Burr, Bright |
| Usage: | Ball Bearings,automobile, Engineering Machinery | Advantage: | High Precision, High Hardness,anti-corrosion |
| Standard: | GB/T308, ISO, ANSI/ABMA, DIN 5401 | Service: | Test Report For You, Guarantee Quanlity And Q'ty |
| Free Samples: | Supply The Samples For Test | ||
| High Light: | 44.95mm Large Solid Steel Balls,100Cr6 Large Solid Steel Balls,E52100 Large Solid Steel Balls |
||

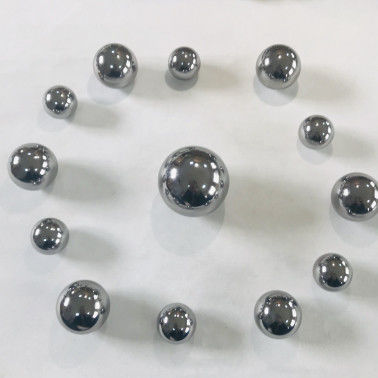

44.95mm(1.769685") Large Solid Steel Ball Used For Ball Bearing, G40,E52100
Description
AISI52100 chrome steel balls are used in the ball and roller bearing industry and various automotive applications. These chrome steel balls have excellent surface quality through quenching, they have excellent wear resistance, high hardness and high load carrying capacity.The steel has the characteristics of moderate plasticity, low cutting performance, poor welding performance, high sensitivity to white spots and temper brittleness.
Modern furnaces with precisely controlled atmospheres and temperatures are used for heat treating to assure uniform hardness and proper microstructure for each steel ball.
Apllication
Application of precision bearings, automotive parts (brakes, steering gears, spools), ball transfer units, linear ball bearings, bicycle and motorcycle parts, electrical appliances, quick couplings, machine tools, locking mechanisms, conveyor belts, ball pens, pumps, casters , measuring instruments, valves, recirculating balls. Used for browning, polishing and milling machinery.
Grade and Precision
| Grade | Hardness | Material | Ball Diameter |
| G40 | HRc 61-67 | GCr15, SUJ2, E52100,100Cr6 | 44.95mm(1.769685") |
Our services and advantages
1. High precision, high hardness, high speed.
2. Can be customized according to your needs.
3. Can provide small and miniature standard and non-standard balls.
4. Reasonable price.
5. Technology: low vibration, low noise, high precision and durability.
6. Our quality is higher at the same price, our price is lower at the same quality,
7. For the same number of bearings, our delivery time is shorter than other factories.
8. We provide the best service. A good reputation has always been the advantage of our company.
Chemical Composition
| Material | C% | Si% | Mn% | Cr% | Cu% |
| 52100 | 0.98~1.10 | 0.15~0.35 | 0.25~0.45 | 1.30~1.60 | |
| GCr15 | 0.95~1.05 | 0.15~0.35 | 0.25~0.45 | 1.40~1.65 | 0.25 |
| GCr15SiMn | 0.95~1.05 | 0.45~0.75 | 0.95~1.25 | 1.40~1.65 | 0.25 |
| 100Cr6 | 0.93~1.05 | 0.15~0.35 | 0.25~0.45 | 1.35~1.60 | |
| SUJ2 | 0.95 or 1.10 | 0.15 or 0.35 | 0.50 max | 1.30~1.60 |
