Product Details:
|
| Material: | Forged Chrome Steel, 100CrSiMn6-4,GCr15SiMn | Ball Precision: | G60 Or G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Single/double Row Ball Bearing |
| Surface: | Smooth Surface And Polished Finish | Properties: | Good Wear Resistance, Crushing Load Capacity |
| Free Samples: | The Free Samples Can Be Inspected | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| Highlight: | HRc 60 Chrome Steel Bearing Balls,HRc 67 Chrome Steel Bearing Balls,60.06mm Thrust Bearing Ball |
||

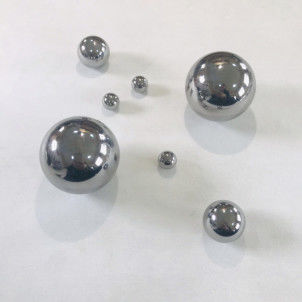

60.06mm(2.364567"),59.94mm To 60.06mm, Large Solid Steel Balls For Wind Turbine Bearing, G40 Or G60, SUJ3
Introduction
The full name of bearing steel is rolling bearing steel. It has high compressive strength and anti-fatigue performance, high hardness, high wear resistance and certain toughness, good hardenability, and extremely strict control of sulfur and phosphorus. It is a high-grade high-quality steel. Make cold work mold steel. Specific gravity: 7.81.
GCr15SiMn bearing steel has higher wear resistance and hardenability than GCr15, medium cold working plastic deformation, poor weldability, sensitive to white spot formation, and temper brittleness during heat treatment. Used to manufacture ferrules with wall thickness> 12mm and outer diameter ≥ 250mm; steel balls with a diameter of 50.8-203.2 and rollers with a diameter> 22mm; in addition, it can also be used as other mechanical parts that require high hardness and high wear resistance, such as rolls. Spiral gauge etc.
Chrome steel ball, as the main part of bearing, are being widely used on the application like automotive industry, automobile, instruments, heavy machinery, engineering machinery and rolling mill machinery. etc.
We mainly produce chromium steel with a size of 7-82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
The ball has high precision, good surface smoothness, standard hardness and excellent wear resistance. Our products have been widely exported to Europe, America, Japan, Korea and so on.
Parameter
| Ball Diameter | Grade | Hardness | Material |
| 60.06mm(2.364567") | G40 or G60 | HRc 60-67 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 |
Product Details
| Product Name | High Quality 2 inch Slewing Chrome Steel Balls |
| Size range | Ø 7.9375 mm – Ø 50 mm (GCr15/SUJ2/100Cr6 Chrome Steel Balls) Ø 50 mm – Ø 82.55 mm(GCr15SiMn/SUJ3/100CrMn6 Chrome Steel Balls) |
| Quality grades | G40 for balls Ø38.1mm to 50mm G60 for balls Ø60mm to 76.2mm |
| Hardness | GCr15 :Core hardness min HRC55 Surface to OD’S 15% depth hardness min HRC58 Surface Hardness min HRC61 GCr15SiMn:Core hardness min HRC55 Surface to OD’S 15% depth hardness min HRC58 Surface Hardness min HRC61 |
| Application | The High Quality 2 inch Slewing Chrome Steel Balls are mainly applied in slewing ring bearing for wind turbines,such as single/double row ball bearing,single cross roller bearing,three roller bearing,double row angular contact ball bearing. |
| Precision / Grade | Ball Diameter Tolerance | Deviation from Spherical Form | Maximun surface roughness | Lot diameter variation |
| G40 | 1 | 1 | 0.06 | 2 |
| G60 | 1.5 | 1.5 | 0.08 | 3 |
FAQ
Q: How long is the time of delivery?
A: The steel balls are in stock can be shipped around one week. otherwise,it takes about 20-30 days.
Q: Do you provide the samples?
A: Yes, small quantity of free samples could be provided.
