Product Details:
|
| Material: | Forged Chrome Steel, 100Cr6 , AISI52100 | Ball Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Thrust Ball Bearings,Slewing Ring Bearing |
| Surface: | High Polished , Grinding, No Scratch | Properties: | Good Wear Resistance, Good Toughness |
| Free Samples: | The Free Samples Can Be Inspected | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| High Light: | GCr15 Forged Steel Grinding Balls,49.94mm Forged Steel Grinding Balls,50.06mm Steel Forged Grinding Balls |
||

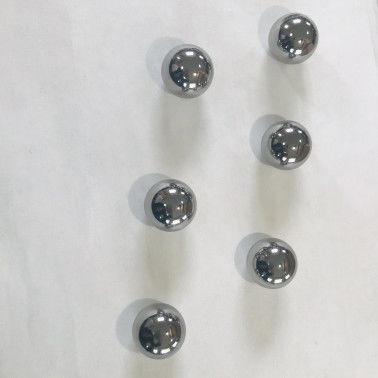

1.966535" (49.95mm),49.94mm to 50.06mm, large solid Steel Balls For Wind Turbine Bearing, G40
Introduction
Chrome (Gcr15,100Cr6,52100,SUJ2) steel balls, also called bearing steel balls , High precision chrome steel balls contain chromium and due to through hardening has an excellent surface quality and high load bearing.
Throughout the manufacturing process, statistical process control assures tolerance accuracy, fine surface finish and a consistent high quality. are the most widely used in the ball and roller bearing industry and for a variety of automobile applications.
Chrome balls are manufactured from the highest quality chrome alloy steel and through-hardened for maximum strength and service life. as the main part of bearing, are being widely used on the application like automotive industry, automobile, instruments, heavy machinery, engineering machinery and rolling mill machinery etc.
Although these chromium steel balls have good rust resistance, but it is recommended to use a dry cloth to wipe clean after use and apply a layer of oil, so that they have better rust resistance, to extend their service life.
We mainly produce chromium steel with a size of 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
Most importantly, we can customize our products to suit various needs of our customers.
Detailed Information
| Size | 49.94mm,49.95mm,49.96mm,49.97mm,49.98mm,49.99mm,50mm |
| material | Gcr15,AISI52100,100Cr6,SUJ2 |
| Precision | G40 |
| Application | automobile, slewing ring bearing and also bearing,engineering machinery |
| Special properties | 1. High accuracy |
| 2. no defects of surface | |
| 3. high hardness | |
| 4. Can be produced according customer requirement | |
| 5. Can provide small and big size standard and non-standard steel ball. | |
| Service | can provide free samples for checked, quantity and quality assured |
| Lead time |
Normal have in stock within one week can be shipped. It will take about 20 to 30 days can be shipped out of stock or depending on the order q'ty. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A: 100% |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
Grade and Hardness
| Ball Diameter | Grade | Hardness | Material |
| 1.966535" (49.95mm) | G40 | HRc 60-67 | GCr15,100Cr6,SUJ2,52100 |
Advantage
Precision: they are roundness, high hardness and high accuracy, surface no crack.
Tolerance: ball dimensional tolerance, Deviation from Spherical Form, lot diameter variation, maximun surface roughness meet the standard.
Price: Small MOQ with competitive price.
| Precision / Grade |
Ball Diameter Tolerance Vdws(≤) µm |
Deviation from Spherical Form △Rs(≤) µm |
Maximun surface roughness Ra(≤)µm |
Lot diameter variation Dwl(≤) µm |
| G40 | 1.0 | 1.0 | 0.06 | 2 |
