Product Details:
|
| Material: | High Chrome Steel , 100Cr6 , SUJ2, 52100 | Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Big Ball Bearing And So On |
| Surface: | High Polished, Grinding, No Breakage | Advantage: | Good Wear Resistance, Good Toughness |
| Free Samples: | The Free Samples Can Be Inspected | Standard: | DIN, ASTM, AISI, JIS, AFN |
| High Light: | 50.72mm Big Steel Balls,52100 Ball,50.91mm Big Metal Balls |
||

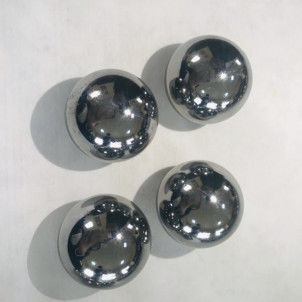

50.92mm(2.0047244"), 50.72mm To 50.91mm , High Quality Large Solid Steel Balls For Big Bearing , G40
Introduction
GCr15 steel is the representative steel of high carbon chromium bearing steel, with good overall performance, high and uniform hardness, high wear resistance and contact fatigue strength, and good hot workability after quenching and tempering. After spheroidizing annealing, although it has good workability, it is sensitive to the formation of white spots.
Throughout the manufacturing process, statistical process control can ensure tolerance accuracy, good surface finish and consistent high quality. It is most widely used in the ball and roller bearing industry and various automotive applications.
Bearing steel balls have a long history of use in the precision bearing industry and service life, and are more widely used. It can be said that most of the rotating places have steel balls, commonly known as steel balls.
Mainly used to manufacture steel balls, rollers and bushings on drive shafts of internal combustion engines, electric locomotives, machine tools, tractors, rolling equipment, drilling machines, railway vehicles and mining machinery.
Steel balls are divided into grinding steel balls, forged steel balls and cast steel balls according to the production process. According to the processing materials, it is divided into bearing steel balls, stainless steel steel balls, carbon steel steel balls, copper bearing steel balls and alloy steel balls.
Among them, the bearing steel ball is an important basic component in the industry, and the alloy steel ball is a spherical shape made by forging, spinning, rolling, and casting with carbon, chromium, manganese, molybdenum and other metal elements as the main components. metal element. Special-shaped ferroalloy wear-resistant body is an important part of crushing industrial mine balls and cement balls.
We mainly produce chrome steel with sizes ranging from 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
Most importantly, we can customize products to meet the various needs of customers.
Detailed Information
| Size | 50.83mm,50.85mm,50.86mm,50.88mm,50.90mm etc. |
| material | Gcr15,AISI52100,100Cr6,SUJ2 |
| Precision | G40 |
| Application | automobile, slewing ring bearing and also ball bearing,engineering machinery |
| Special properties | 1. High precision |
| 2. no grinding burn of surface | |
| 3. high hardness | |
| 4. Can be produced according customer requirement | |
| 5. Special types of balls supplied. | |
| Service | can provide free samples for checked, quantity and quality assured |
| Lead time |
Normal have in stock within one week can be shipped. It will take about 20 to 30 days can be shipped out of stock or depending on the order q'ty. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
Advantage
| Special types of balls supplied. |
| Small MOQ with competitive price. |
| Fast delivery based on quality guaranteed. |
| Small quantity of free samples could be provided. |
| Normal have in stock within one week can be shipped. |
Grade and Tolerance
| Precision / Grade |
Ball Diameter Tolerance Vdws(≤) µm |
Deviation from Spherical Form △Rs(≤) µm |
Maximun surface roughness Ra(≤)µm |
Lot diameter variation Dwl(≤) µm |
| G40 | 1.0 | 1.0 | 0.06 | 2 |
FAQ
Q: How about production time?
A: The steel balls are in stock can be shipped around one week. otherwise,it takes about 20-30 days.
Q: Do you provide the samples?
A: Yes, small quantity of free samples could be provided.
Q, Our packages?
A: Usually, we will be plastic bag into carton box, then packed in plywood pallets, it can also be customized.
