Product Details:
|
| Material: | GCr15SiMn,100CrSiMn6-4,E52100 | Precision: | G60 |
|---|---|---|---|
| Hardness: | HRc60 - HRc67 | Application: | Wind Power Bearing, Slewing Ring Bearing |
| Surface: | Bright, Grinding, High Polished | Feature: | Good Size Stability And Anti-abrasion |
| Samples: | Can Be Supplied For Free | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| Highlight: | G60 Metal Bearing Balls,62.97mm Metal Bearing Balls,62.97mm Precision Chrome Steel Ball |
||

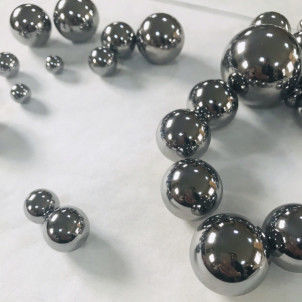

62.97mm(2.479134"), Chrome Steel Bearing Balls For Bearing, G40 Or G60
Description
Chrome (GCr15SiMn,100CrSiMn6-4,SUJ3) steel balls is a kind of high carbon chromium bearing steel with low alloy content, have good superior performance and excellent wear characteristics,resistance to deformation,high load bearing capacity and high contact fatigue performance after quenching and tempering.
Chrome balls are manufactured from the highest quality chrome alloy steel and through-hardened for maximum strength and service life. Applications that are ideal for chrome balls include tumbling media, spray can agitation, ball bearings,Wind Turbine Bearing, linear motion components. most widely used in various industires.
1.These high precision ball bearings are hot forged from bar stock. Great for applications where there will be extreme rotation.
2.Modern furnaces with precisely controlled atmospheres and temperatures are used for heat treating to assure uniform hardness and proper microstructure for each steel ball.
3.Ball hardness is controlled within the 60-63 HRC range as measured on parallel flat surfaces. The steel balls come lightly lubricated to keep their perfect polish.
4.Bearing balls are used in automotive applications, for semi-precision bearings, and in commercial applications such as casters, locks, and drawer slides.
5.Other applications for steel bearing balls include bicycles, casters, drawer slides, door locks.
Our products enjoy a highly appreciated and satisfiied among our customers. Most importantly, we can customize our products to suit various needs of our customers. Based on customer’s requirement, the steel balls could be produced according to China Standard GB/T 308, International Standard ISO 3290, America Standard ANSI/ABMA, Germany Standard DIN 5401, Japan Standard JIS B 1501 etc.
Why choose us
1. Professional manufacturer of steel balls more than 15 years.
2. The leading domestic facility which can supply high precision steel balls with complete specifications.
3. An integrated set of industry and trade company,professional at before & after sales service.
4. Certified by ISO 9001:2000,SGS quality system certification.
5. Strict quality control system,100% inspection.
6. Adequate inventory,on time delivery.
7. All inquiries and messages will be replied within 24 hours.
8. Free samples can be offered.
Product Details
| Product Name | High Chrome Grinding Steel Balls |
| Size range | 62.94 mm to 63.06 mm(GCr15SiMn/SUJ3/100CrMn6 high Chrome Steel Balls) |
| Quality grades | G40 or G60 for balls Ø62.94mm to 63.06mm |
| Hardness |
For 63mm group ball, a minumun core hardness at centre of the ball shall be HRc55. minumun hardness at surface of the ball shall be HRc60. minumun hardness at depth of 15% ball diameter shall be HRc58. |
| Application | The High Quality Chrome Steel Balls are mainly applied in Deep Groove Ball Bearing, Angular Contact Ball Bearings, Thrust Ball Bearings, Wheel Hub Bearings, Linear Bearings,wind turbine bearing, slewing ring bearing and also the Bearing. |
| Wind turbine bearings |
Wind turbine bearings are important components of wind power generator, usually uses large slewing bearing. According to the installation location, wind turbine bearings could be seperated into main shaft bearings, yaw bearings and pitch bearing etc. The life of wind turbine bearings are required to more than 20 years as the working environment is tough and maintenance cost is very high. Therefore, wind turbine bearings have strict quality requirements on steel balls and other accessories. |
Specification
| Basic Information | |
| Material | GCr15,GCr15SiMn,SUJ2,52100,100Cr6 |
| Metric Size | 7.9375mm - 82.55mm |
| Inch Size | 0.3125” – 3.25” |
| Grade | G10, G16, G20, G28, G40, G60, G100 |
| Chemical Composition | ||||||
| C% | Si% | Mn% | Cr% | Cu% | C% | |
| 52100 | 0.98~1.10 | 0.15~0.35 | 0.25~0.45 | 1.30~1.60 | 0.98~1.10 | |
| GCr15 | 0.95~1.05 | 0.15~0.35 | 0.25~0.45 | 1.40~1.65 | 0.25 | 0.95~1.05 |
| GCr15SiMn | 0.95~1.05 | 0.45~0.75 | 0.95~1.25 | 1.40~1.65 | 0.25 | 0.95~1.05 |
| 100Cr6 | 0.93~1.05 | 0.15~0.35 | 0.25~0.45 | 1.35~1.60 | 0.93~1.05 | |
| SUJ2 | 0.95 or 1.10 | 0.15 or 0.35 | 0.50 max | 1.30~1.60 | 0.95 or 1.10 | |
| Mechanical Properties | ||
| GCr15 | GCr15SiMn | |
| Density(g/cm3) | 7.8 | 7.8 |
| Hardenability | Good | Excellent |
| Wear Resistance | Excellent | Excellent |
