Product Details:
|
| Steel: | GCr15, E52100, 100Cr6, SUJ2 | Grade: | G40 |
|---|---|---|---|
| Hardness: | HRc61-67 | Surface: | Smooth, Bright, High Polished |
| Usage: | Ball Bearing, Bicycle, Automobile | Standard: | DIN, ASTM, AISI, JIS, AFN |
| Feature: | High Precision, Excellent Resistance | Free Sample: | Free Supply For You |
| Highlight: | 44.49mm Metal Bearing Balls,E52100 Metal Bearing Balls,44.49mm Ball Bearing Balls |
||

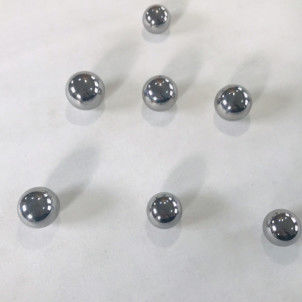

44.49mm(1.751575"), G40, High Quality Chrome Steel Balls for slewing ring bearings
Introduction
High-carbon chromium bearing steel is a high-carbon alloy steel with a chromium content of 1.40~1.65%. Its characteristics are more uniform and stable structure after heat treatment, high hardness, high uniformity, good wear resistance, high contact fatigue strength, good dimensional stability after annealing, corrosion resistance, good cutting performance, and relatively cheap price. This steel can meet the bearing requirements under normal operating conditions.
Chrome steel ball, as the main part of bearing, are being widely used on the application like automotive industry, motors, home appliances, instruments, hardwares etcs.
Balls used in valves usually require close control of roundness and surface finish to insure leak-tight operation.
GCr15:
1. The residual copper content (melting analysis) of the steel for bearing steel pipes should not exceed 0.2%.
2. The oxygen content is measured on the billet or steel.
3. The sulfur content (melting analysis) of wire rod steel should not exceed 0.02%.
Surface Qualities
Surface Roughness: Surface roughness consists of all those irregularities which form surface relief and which are conventionally defined within the area where deviations of form and waviness are eliminated.
Waviness: The more widely spaced circumferential component of surface texture.
chrome steel and other metal balls are manufactured using the following processe
Our Advantages
1. Professional manufacturer of steel balls more than 15 years.
2. The leading domestic facility which can supply high precision steel balls with complete specifications.
3. Technology: low vibration, low noise, high precision and durability..
4. Strict quality control system,100% inspection.
5. Our quality is higher at the same price, our price is lower at the same quality.
6. Sufficient inventory, on-time delivery.
7. All inquiries and messages will be replied within 24 hours.
8. Free samples can be offered.
Detailed Description
| Size |
44.47mm,44.48mm,44.49mm,44.50mm,44.51mm,44.52mm, |
| Material | Gcr15,52100,100Cr6,SUJ2 |
| Precision | G40 |
| Hardness | HRc61-67 |
| Application | wind turbine bearing and ball bearing and also bearing |
| Special properties | 1. High precision |
| 2. smooth surface and bright | |
| 3. high hardness | |
| 4. Can be customized according to customer's needs | |
| 5. Can provide small and big size standard and non-standard chrome steel ball. | |
| Service | OEM & ODM service |
| Delivery date | Normal have in stock within one week can be shipped. |
Grade and Tolerance
| Precision / Grade | Ball Diameter Tolerance Vdws(≤) µm |
Deviation from Spherical Form △Rs(≤) µm |
Maximun surface roughness Ra(≤)µm |
Lot diameter variation Dwl(≤) µm |
| G40 | 1 | 1 | 0.06 | 2 |
