Product Details:
|
| Material: | High Chrome Steel, 100Cr6,SUJ2,GCr15 | Ball Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Big Ball Bearing Such As Kinds Of Industries |
| Surface: | High Polished, Grinding, No Breakage | Advantage: | Complete Specfications, Good Toughness And Roundness |
| Free Samples: | The Free Samples Can Be Inspected | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| High Light: | 45.03mm Carbon Steel Balls,G40 Carbon Steel Balls,SGS Carbon Steel Bearing Balls |
||

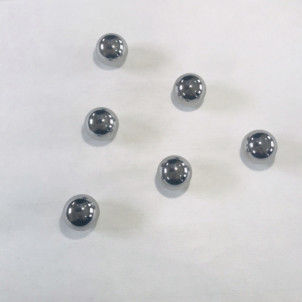

45.03mm(1.77283"), Polished Steel Balls For Wind Turbine Bering, G40
Product Details
The high-carbon chromium bearing steel is a high-carbon alloy steel with 1.40~1.65% chromium. It is characterized by a more uniform and stable structure after heat treatment, high hardness, high uniformity, good wear resistance, high contact fatigue strength, and good dimensional stability and corrosion resistance after annealing, its cutting performance is good and the price is relatively cheap. This steel can meet bearing requirements under normal working conditions.
Hardness
Less than 30mm is HRC62-67; 45mm, 50mm, 60mm group and 63mm group is HRC61-67; 76.2mm,80mm,82.55mm is HRC 57-63 and 69.85mm is HRC59-65.
Material Characteristics
Mainly used in ball bearing design and various industrial applications. A vacuum degassed GCr15 chrome steel is used to obtain high-quality balls with excellent surface finish, through-hardness and high load capacity. Consumable electrode vacuum melting materials can also be provided.
Applicable Industries
GCr15 bearing steel is widely used to manufacture spindle bearings, railway bearings,engine bearings, machine tools bearings, mining machinery bearings, general machinery bearings etc.
GCr15SiMn bearing steel is mainly used to manufacture thick wall bearings, such as large and extra large size bearings, used in heavy machinery and rolling mill machinery.
Chrome steel and other metal balls are manufactured using the following processes
Our Advantages
Precision: they are roundness, high hardness and high accuracy, surface no crack.
Tolerance: ball dimensional tolerance, Deviation from Spherical Form, lot diameter variation, maximun surface roughness meet the standard.
Price: Small MOQ with competitive price.
Time of delivery:Fast delivery based on quality guaranteed.
Detailed Information
| Product name | High Quality 2 inch Slewing Chrome Steel Balls |
| Size range | Ø 15.875 mm – Ø 50 mm (GCr15/SUJ2/100Cr6 Chrome Steel Balls) Ø 50 mm – Ø 80 mm(GCr15SiMn/SUJ3/100CrMn6 Chrome Steel Balls) |
| Quality grade | G40 for balls Ø39.688-65mm G60 for balls Ø 69.85-80mm |
| Hardness | GCr15 :Core hardness min HRC55 Surface to OD’S 15% depth hardness min HRC58 Surface Hardness min HRC61 GCr15SiMn:Core hardness min HRC55 Surface to OD’S 15% depth hardness min HRC58 Surface Hardness min HRC61 |
| Application | The High Quality 2 inch Slewing Chrome Steel Balls are mainly applied in slewing ring bearing for wind turbines,such as single/double row ball bearing,single cross roller bearing,three roller bearing,double row angular contact ball bearing. |
