Product Details:
|
| Material: | High Chrome Steel, 100Cr6,SUJ2,GCr15 | Ball Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Big Ball Bearing Such As Kinds Of Industries |
| Surface: | High Polished, Grinding, No Breakage | Advantage: | Complete Specfications, Good Toughness And Roundness |
| Free Samples: | The Free Samples Can Be Inspected | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| Highlight: | 45.05mm Carbon Steel Balls,HRc 60 Carbon Steel Balls,45.05mm Precision Steel Ball |
||

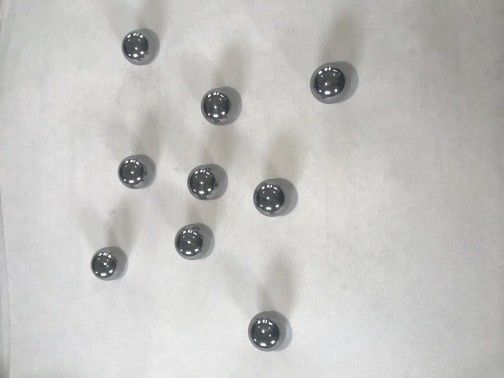

45.05mm(1.773622"), Polished Steel Balls For Wind Turbine Bering, G40
Description
The basic quality requirements of bearing steel are purity and uniform organization. Purity means less impurity elements and non-metal impurities, and a uniform structure means that the carbides in the steel should be fine and uniformly distributed. There are high requirements on the quality of bearing steel smelting, and the content and distribution of sulfur, phosphorus and non-metallic inclusions must be strictly controlled, because the content and distribution of non-metallic inclusions have a great impact on the life of bearing steel. The higher the inclusion content, the shorter the life span. To improve the quality of smelting, electric furnace smelting and electroslag remelting have recently been used, and new processes such as vacuum smelting and vacuum consumable refining can also be used to improve the quality of bearing steel.
High-carbon chromium bearing steel refers to high-carbon alloy steel with a chromium content of 1.40-1.65%. Its characteristics such as microstructure after heat treatment is relatively uniform and stable, good wear resistance, high stress fatigue strength, good dimensional stability and wear resistance.
Most bearing rings and rolling elements are made of special steel. High-carbon chromium bearing steel (GCr15 and GCr15SiMn and ZGCr15 and ZGCr15SiMn) are used to manufacture ferrules and rolling elements with high hardness.
Bearings made of high-carbon steel chromium bearing steel are generally suitable for operating temperature in the range of -40 to 130 degrees, and oil and grease lubrication is normal. It can meet the requirements of general machinery. After the high-carbon chromium bearing steel bearing parts are tempered at high temperature, the working temperature can be as high as 250 degrees.
High-carbon chromium bearing steel is a large type of bearing steel, and is the most commonly used steel for manufacturing bearings and bearing parts. The most commonly used high carbon chromium bearing steels are GCr15 and GCr15SiMn, the former of which is the most used in my country's bearing industry.
Applicable Industries
GCr15 bearing steel is widely used to manufacture spindle bearings, railway bearings,engine bearings, machine tools bearings, mining machinery bearings, general machinery bearings etc.
GCr15SiMn bearing steel is mainly used to manufacture thick wall bearings, such as large and extra large size bearings, used in heavy machinery and rolling mill machinery.
Chrome steel and other metal balls are manufactured using the following processes
Our Advantages
1. Professional manufacturer with independent export right.
2. Special types of balls supplied.
3. Small MOQ with competitive price.
4. Fast delivery based on quality guaranteed.
5. Small quantity of free samples could be provided.
6. All inquiries and messages will be replied in 24 hours
Detailed Information
| Product name | High Quality 2 inch Slewing Chrome Steel Balls |
| Size range | Ø 15.875 mm – Ø 50 mm (GCr15/SUJ2/100Cr6 Chrome Steel Balls) Ø 50 mm – Ø 80 mm(GCr15SiMn/SUJ3/100CrMn6 Chrome Steel Balls) |
| Quality grade | G40 for balls Ø39.688-65mm G60 for balls Ø 69.85-80mm |
| Hardness | GCr15 :Core hardness min HRC55 Surface to OD’S 15% depth hardness min HRC58 Surface Hardness min HRC61 GCr15SiMn:Core hardness min HRC55 Surface to OD’S 15% depth hardness min HRC58 Surface Hardness min HRC61 |
| Application | The High Quality 2 inch Slewing Chrome Steel Balls are mainly applied in slewing ring bearing for wind turbines,such as single/double row ball bearing,single cross roller bearing,three roller bearing,double row angular contact ball bearing. |
