Product Details:
|
| Material: | High Chrome Steel, 100Cr6, SUJ2, E52100 | Accuracy: | G10-G1000 |
|---|---|---|---|
| Hardness: | HRc61 To HRc67 | Application: | Thrust Ball Bearing, Also Ball Bearing |
| Surface: | Lapping, Polished, Roundness | Feature: | High Capacity And Quality, High Stress Fatigue Strength |
| Samples: | Can Be Supplied For Free | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |

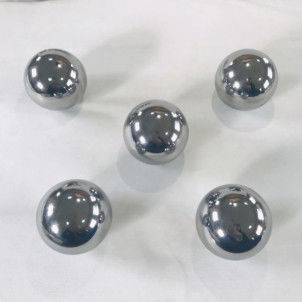

High Carbon Steel Balls HRc61 DIN 5401 Chrome Metal Ball
Profile
GCr15 steel has low alloy content and good performance. It is currently the most widely used bearing steel. It has excellent properties such as uniform structure, high hardness, high wear resistance and contact fatigue strength, and good hot workability after quenching and tempering at low temperature.
From the perspective of application categories, steel balls can be divided into two categories: wear-resistant steel balls in the crushing industry and bearing steel balls in the precision bearing industry.
Bearing steel balls have a long history of use in the precision bearing industry and life, and they are more widely used. It can be said that most of the places where there is rotation, there are steel balls, commonly known as steel balls and steel balls. Steel ball is the general term for steel ball, steel segment and special-shaped grinding body. According to the appearance, it can be divided into round balls (general narrow names), capsule balls, elliptical balls, hollow balls, multi-faceted balls, multiple missing balls (with pits on the surface), etc.
Steel balls are widely used in bearings, hardware, electronics, mechanical equipment, electric power, mining, metallurgy and other fields.
We mainly produce chrome steel with sizes ranging from 1.5mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
Most importantly, we can customize products to meet the various needs of customers.
Advantage
Professional team can provide custoers with high quality products and services.
Provide the customization production be able to meet sutomer requirements very well.
We have formed a set of manufacture, sales, service, maintenance, development of a complete one stop service system.
Our services and advantages
1. High precision, high hardness, high speed.
2. Can be customized according to your needs.
3. Can provide small and miniature standard and non-standard balls.
4. Reasonable price.
5. Technology: low vibration, low noise, high precision and durability.
6. Our quality is higher at the same price, our price is lower at the same quality,
7. For the same quantity of bearings, our delivery time is shorter than other factories.
8. We provide the best service. A good reputation has always been the advantage of our company.
Product Details
| Grade | Hardness | Material | Ball Diameter |
| G20 | HRc 62-67 | Gcr15(52100,100Cr6,SUJ2) | 5/8" (15.875mm) -- 1" (25.4mm) |
| G28 | HRc 61-67 | Gcr15(52100,100Cr6,SUJ2) | 1 1/8"(28.575mm) -- 1 3/8" (34.925mm) |
| G40 | HRc 61-67 | Gcr15(52100,100Cr6,SUJ2) | 1 1/2" (38.1mm) -- 2 1/6" 55mm |
| G40 | HRc 61-67 | Gcr15(52100,100Cr6,SUJ2) | (44.94mm - 45.06mm) |
| G40 | HRc 61-67 | Gcr15(52100,100Cr6,SUJ2) | (49.94mm - 50.06mm) |
| G40 | HRc 61-67 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 | (59.94mm- 60.06mm) |
| G40 or G60 | HRc 61-67 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 | (62.94mm - 63.06mm) |
| G60 or G100 | HRc 57-63 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 | 3" (76.2mm) |
| G100 | HRc 59-65 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 | 2 3/4" (69.85mm) -- 3 3/20" (80mm) |
| G100 | HRc 57-63 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 | 3 1/4" ( 82.55mm) |
Grade and Tolerances-Metric (Millimeter)
| Grade | Deviation from Spherical Form | Lot Diameter Variation | Allowable Ball Gage Variation | Norminal Ball Diameter Tolerance | Marking Increments | Maximum Surface Roughness in Microinches "Ra" |
| 3 | 0.00008 | ±0.00008 | ±0.0008 | 0.00025 | 0.012 | |
| 5 | 0.00013 | ±0.00013 | ±0.0013 | 0.00025 | 0.020 | |
| 10 | 0.00025 | ±0.00025 | ±0.0013 | 0.00025 | 0.025 | |
| 25 | 0.00060 | ±0.00060 | ±0.0025 | 0.00025 | 0.051 | |
| 50 | 0.00120 | ±0.00120 | ±0.0051 | 0.00127 | 0.076 | |
| 100 | 0.00250 | ±0.00250 | ±0.0381 | 0.127 | ||
| 200 | 0.00500 | ±0.00500 | ±0.0250 | 0.203 | ||
| 1000 | 0.02500 | ±0.02500 | ±0.1270 |
