Product Details:
|
| Material: | GCr15, GCr15SiMn | Surface Finish: | Polished |
|---|---|---|---|
| Packaging: | Carton And Wooden Pallet | Grades: | G10-G100 |
| Heat Treatment: | Quenching And Tempering | Concentricity: | ≤0.001mm |
| Surface Roughness: | Ra0.2 | Roundness: | ≤0.001mm |
High Precision Bearing Balls are made of premium materials such as GCr15, GCr15SiMn, which offer superior hardness, up to HRC60-65, for long-term durability. They are precisely crafted, with a concentricity tolerance of ≤0.001mm and a surface roughness of Ra0.2, ensuring the highest precision. With an overall tolerance of ±0.001mm, these bearing balls provide a perfectly balanced structure for reliable performance.
High Precision Bearing Balls are perfect for precision machinery applications, offering superior material properties and precise appearance. The materials used in these bearing balls are carefully chosen for long-term resistance to wear and tear, while the tight tolerance provides the highest level of accuracy and reliability.
The superior material and precision of High Precision Bearing Balls make them an ideal choice for a variety of applications, including medical, automotive, aerospace, and other industrial fields. With the highest level of material and precision, these bearing balls are sure to offer a reliable and long-lasting performance.
| Application |
Suitable for many industrial applications, such as ball bearings, household appliances, automotive industry, mechanical equipments, mining, metallurgy, wind power like large rotary bearings (rotary disk bearings), wind power bearings such as yaw bearings, variable blade bearings, etc., |
| Raw Material | Gcr15,Gcr15SiMn,100Cr6,E52100 etc. |
| Size Range | Ø 15.875 mm - Ø 50 mm (GCr15 ) |
| Ø 50 mm - Ø 82.55 mm (GCr15SiMn ) | |
| Grade | G10-200 (G 10, G 16, G 20, G 24, G 28, G 40, G 60, G 100, G 200) |
| Hardness | 58-67HRC |
| Feature | (a)Mainly used in bearings |
| (b)Good hardness | |
| (c)Good resistance to deformation with excellent wear resistance | |
| (d)Low corrosion | |
| Magnetic | Yes |
| Packing |

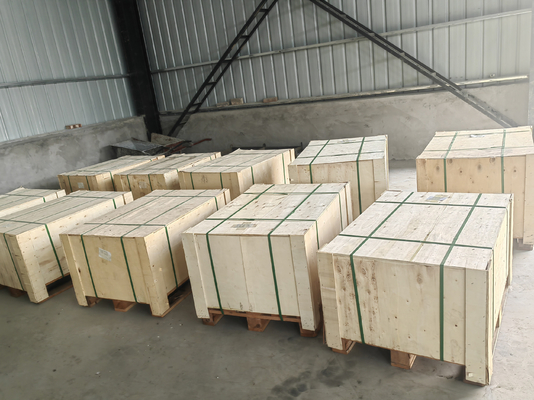

Dry or oiled. Standard export packing: 10kg or 20kg per carton,1 ton per pallet or as per customer's requirement. Refer to related pictures. Firstly we pack the balls in cartons For each cartons,Then, we pack our balls using wooden pallet(Plywood) in our export business: |
| Time of delivery | Within a week if stock is available |
| 20~45 days according to the order quantity |
High Precision Bearing Balls
