Product Details:
|
| Material: | Forged Chrome Steel, 100CrSiMn6-4,E52100 | Ball Precision: | G60 Or G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Large Size Ball Bearing |
| Surface: | No Crack, No Grinding Burn | Properties: | Good Wear Resistance, Crushing Load Capacity |
| Free Samples: | The Free Samples Can Be Inspected | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| High Light: | SUJ3 Large Solid Steel Balls,59.94mm Large Solid Steel Balls,SUJ3 2 Inch Metal Ball |
||

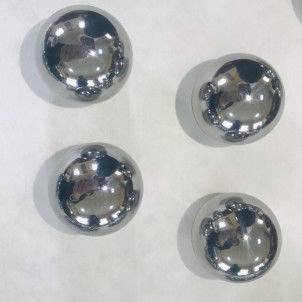

60mm(2-25/69"),59.94mm To 60.06mm, G40 Or G60, SUJ3,Large Solid Steel Balls For Wind Turbine Bearing
Introduction
The high-carbon chromium bearing steel is a high-carbon alloy steel with 1.30~1.65% chromium. It is characterized by a more uniform and stable structure after heat treatment, high hardness, high uniformity, good wear resistance, high contact fatigue strength, and good dimensional stability and corrosion resistance after annealing, its cutting performance is good and the price is relatively cheap. This steel can meet bearing requirements under normal working conditions.
Chrome steel ball, as the main part of bearing,GCr15SiMn bearing steel is mainly used to manufacture thick wall bearings, such as large and extra large size bearings, used in heavy machinery and rolling mill machinery.
We mainly produce chromium steel with a size of 7-82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
The ball has high precision, good surface smoothness, standard hardness and excellent wear resistance. Our products have been widely exported to Europe, America, Japan, Korea and so on.
Parameter
| Ball Diameter | Grade | Hardness | Material |
| 60mm(2-25/69") | G40 or G60 | HRc 60-67 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 |
Advantage
Uniform size: Ultra-lapping to ensure that each steel ball has a uniform size.
High performance: have extremely corrosion resistance after oil, high hardness and higher wear resistance.
Precision: the steel ball has high precision and accurate tolerance, suitable for many occasions and different accuracy requirements.
Widely used: high-end industries such as precision bearings, instruments and finishing.
| Precision / Grade |
Ball Diameter Tolerance |
Deviation from Spherical Form |
Maximun surface roughness |
Lot diameter variation |
| G40 | 1 | 1 | 0.06 | 2 |
| G60 | 1.5 | 1.5 | 0.08 | 3 |
FAQ
Q: How long is the time of delivery?
A: The steel balls are in stock can be shipped around one week. otherwise,it takes about 20-30 days.
Q: Do you provide the samples?
A: Yes, small quantity of free samples could be provided.
