Product Details:
|
| Material: | GCr15SiMn,100CrSiMn6-4,52100 | Grade: | G40 Or G60 |
|---|---|---|---|
| Hardness: | ≤HRc67 | Application: | Thrust Ball Bearings, Slewing Ring Bearing |
| Surface: | Bright, Lapping, High Polished | Properties: | Good Size Stability And Anti-abrasion |
| Free Samples: | Can Be Supplied | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| High Light: | SGS Large Solid Steel Balls,59.95mm Large Solid Steel Balls,59.95mm 52100 Chrome Steel Balls |
||

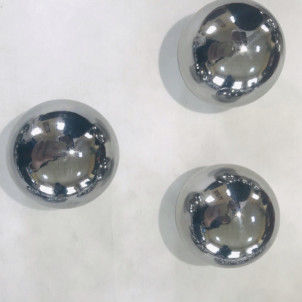

59.95mm(2.360236"),59.94mm To 60.06mm, High Chrome Steel Balls
Introduction
The full name of bearing steel is rolling bearing steel. It has high compressive strength and anti-fatigue performance, high hardness, high wear resistance and certain toughness, good hardenability, and extremely strict control of sulfur and phosphorus. It is a high-grade high-quality steel.
On the basis of GCr15 steel, the content of Si and Mn is appropriately increased to improve its hardenability and elastic limit, and its wear resistance is also better than that of GCr15. The applicable size range for manufacturing rolling elements is larger than that of GCr15. It is mainly used to manufacture bearing rings with wall thickness> 12mm and outer diameter> 280mm. Ball diameter> 50mm; cone, cylindrical and spherical roller diameter> 22mm and needle rollers of all sizes.
We mainly produce chromium steel with a size of 7-82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
The ball has high precision, good surface smoothness, standard hardness and excellent wear resistance. Our products have been widely exported to Europe, America, Japan, Korea etc.
Application
Our steel balls can be used in many industrial fields, such as precision bearings, automotive parts (brakes, steering systems, spools), bicycles, agitators, electrical appliances, sliders, quick connectors, machine tools, locking mechanisms, conveyor belts, pumps, casters, Measuring instruments, valves, etc.
Ideal applications for chrome balls include rolling media, ball bearings, vibration polishing, linear motion components, check valves and locking structures.
Parameter
| Ball Diameter | Grade | Hardness | Material |
| 59.95mm(2.360236") | G40 or G60 | HRc 60-67 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 |
Grade and Tolerance
| Precision / Grade |
Ball Diameter Tolerance |
Deviation from Spherical Form |
Maximun surface roughness |
Lot diameter variation |
| G40 | 1 | 1 | 0.06 | 2 |
| G60 | 1.5 | 1.5 | 0.08 | 3 |
Product Details
| Product Name | High Quality Chrome Steel Balls |
| Size range | Ø 59.94 mm – Ø 60.06 mm(GCr15SiMn/SUJ3/100CrMn6 high Chrome Steel Balls) |
| Quality grades | G40 or G60 for balls Ø59.94mm to 60.06mm |
| Hardness |
For 60mm group ball, a minumun core hardness at centre of the ball shall be HRc55. minumun hardness at surface of the ball shall be HRc60. minumun hardness at depth of 15% ball diameter shall be HRc58. |
| Application | The High Quality Chrome Steel Balls are mainly applied in slewing ring bearing for wind turbines,such as single/double row ball bearing,single cross roller bearing,three roller bearing, double row angular contact ball bearing. and angular contact ball bearings, thrust ball bearings, wheel hub bearings, linear bearings. |
Our services and advantages
1. High precision, high hardness.
2. Can be customized according to customer's requirement.
3. Can provide small and non-standard balls.
4. Moderate price.
5. Technology: running stability, low noise, high precision and extend service life.
6. Our quality is higher at the same price, our price is lower at the same quality.
7. Our delivery time is shorter than other factories for the same qty of balls.
8. We provide the best service. Good reputation has always been our company's advantage.
