Product Details:
|
| Material: | High Chromium,GCr15SiMn,100CrSiMn6-4,E52100 | Grade: | G40 Or G60 |
|---|---|---|---|
| Hardness: | ≤HRc67 | Application: | Power Plant, Slewing Ring Bearing |
| Surface: | Bright, Grinding, High Polished | Properties: | Good Size Stability And Anti-abrasion |
| Samples: | Can Be Supplied For Free | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| Dimensions: | 62.95mm,62.96mm,62.97mm,62.98mm,62.99mm | ||
| High Light: | G60 52100 Chrome Steel Balls,G40 52100 Chrome Steel Balls,63.06mm 52100 Chrome Steel Balls |
||

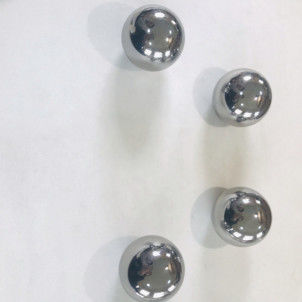

63mm(2.48031496"), 62.94mm to 63.06mm, grinding steel balls for bearing, G40 Or G60
Introduction
Chrome steel 52100 is a versatile material for many applications. The chromium steel ball contains high chromium, and has excellent surface quality and high bearing capacity due to being quenched. Throughout the manufacturing process, statistical process control can ensure tolerance accuracy, good surface finish and consistent high quality.
On the basis of GCr15 steel, the content of Si and Mn is appropriately increased to improve its hardenability and elastic limit, and its wear resistance is also better than that of GCr15. The applicable size range for manufacturing rolling elements is larger than that of GCr15.
The bearing steel adopts low temperature tempering. Temperature: 150~250 degrees. Under the premise of maintaining high hardness and high wear resistance, the internal stress and brittleness can be reduced to avoid cracking or premature damage during use.
We mainly produce chromium steel with a size of 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
The ball has high precision, good surface smoothness, standard hardness and excellent wear resistance. Our products have been widely exported to Europe, America, Japan, Korea etc.
GCr15 notice:
1. The residual copper content (melting analysis) of the steel for bearing steel pipes should not exceed 0.2%.
2. The oxygen content is measured on the billet or steel.
3. The sulfur content (melting analysis) of wire rod steel should not exceed 0.02%.
Application
Our steel balls can be used in many industrial fields, such as wind power bearing, rolling media, ball bearings, vibration polishing, linear motion components.
Parameter
| Ball Diameter | Grade | Hardness | Material |
| 63mm(2.48031496") | G40 or G60 | HRc 60-67 | GCr15SiMn,100CrSiMn6-4,SUJ3,52100 |
Grade and Tolerance
| Precision / Grade |
Ball Diameter Tolerance |
Deviation from Spherical Form |
Maximun surface roughness |
Lot diameter variation |
| G40 | 1 | 1 | 0.06 | 2 |
| G60 | 1.5 | 1.5 | 0.08 | 3 |
| Carbon | 0.98 to 1.10% |
| Chromium | 1.40 to 1.65% |
| Manganese | 0.25 to 0.45% |
| Silicon | 0.15 to 0.35% |
| Sulfur | 0.025% maximum |
| Phosphorous | 0.025% maximum |
Product Details
| Product Name | High Chrome Grinding Steel Balls |
| Size range | Ø 62.94 mm – Ø 63.06 mm(GCr15SiMn/SUJ3/100CrMn6 high Chrome Steel Balls) |
| Quality grades | G40 or G60 for balls Ø62.94mm to 63.06mm |
| Hardness |
For 63mm group ball, a minumun core hardness at centre of the ball shall be HRc55. minumun hardness at surface of the ball shall be HRc60. minumun hardness at depth of 15% ball diameter shall be HRc58. |
| Application | The High Quality Chrome Steel Balls are mainly applied in Deep Groove Ball Bearing, Angular Contact Ball Bearings, Thrust Ball Bearings, Wheel Hub Bearings, Linear Bearings,wind turbine bearing, slewing ring bearing and also the Bearing. |
Properties and Advantage
[High-quality material] Made of high-quality chromium steel, high-grade bearing steel, corrosion resistance, high precision and high hardness. Polished surface, smooth without burrs, standard shape and high precision, completely round.
[Anti-rust] Corrosion resistance and high oxidation resistance. It is also suitable for humid environments. The surface is coated with a small amount of grease to improve lubrication and prevent corrosion and rust.
[Long use] The heat treatment process can make the bearing ball stronger and bear high pressure and wear resistance.
[Wide application] Widely used in wind turbine bearings, yaw bearing, slewingring bearing and so on.
