Product Details:
|
| Material: | GCr15, SUJ2, High Chrome, High Carbon | Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc61- 67 | Application: | Bearing Accessories |
| Surface: | Smooth Ground And Polished Finish | Feature: | High Capacity And Fine Surface Finish, High Stress Fatigue Strength |
| Samples: | Can Be Supplied For Free | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| High Light: | G40 Polished Steel Ball,50.90mm Steel Ball For Bearing,ISO9001 Steel Ball For Bearing |
||

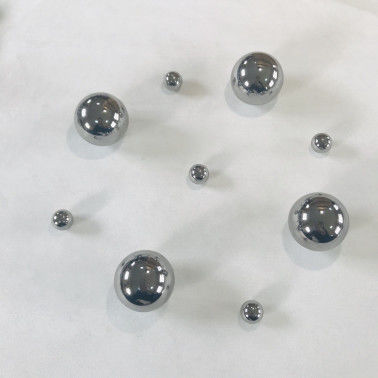

50.90mm(2.003937"), customized size, high chrome steel balls for bearing
Introduction
Chromium (Gcr15, 100Cr6, 52100, SUJ2) steel balls, also called bearing steel balls. The high-precision chromium steel ball contains chromium and has excellent surface quality and high bearing capacity due to being quenched.
Throughout the manufacturing process, statistical process control can ensure tolerance accuracy, good surface finish and consistent high quality. It is most widely used in the ball and roller bearing industry and various wind power applications.
This steel has general cold working plasticity, poor welding performance, and high sensitivity to the formation of white spots and temper brittleness.
Chrome steel balls in the 50.72mm to 50.92mm group are widely used in precision ball bearings and many other industrial applications. The chromium steel balls are hardened and have excellent surface quality, high hardness and high load carrying capacity. Chrome steel balls also have long life service and resistance to deformation.
Steel balls are important basic components, especially precision industrial steel balls which play a huge role in the development of the national economy. Under some special conditions, steel balls of special materials are usually required to meet the functions under different environments. In fact, some special material steel balls have been widely used in various fields of the national economy, including 9Cr18, 3Cr13 stainless steel, copper, aluminum, titanium alloy steel, agate, glass, ceramic balls, etc. Their promotion and application have not only promoted the development of the steel ball production industry, but also promoted the technological development and technological progress of related industries.
The surface of our chrome steel balls is extremely precise and smooth, ensuring that no defects such as flatness, dents, soft spots and cuts will be found.
We mainly produce chrome steel with sizes ranging from 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn. Our balls are mainly used in the wind energy industry.
Properties and Advantage
[High-quality material] Made of high-quality chromium steel, high-grade bearing steel, corrosion resistance, high precision and high hardness. Polished surface, smooth without burrs, standard shape and high precision, completely round.
[Anti-rust] Corrosion resistance and high oxidation resistance. It is also suitable for humid environments. The surface is coated with a small amount of grease to improve lubrication and prevent corrosion and rust.
[Long use] The heat treatment process can make the bearing ball stronger and bear high pressure and wear resistance.
[Wide application] Widely used in wind turbine bearings, yaw bearing, slewingring bearing and so on.
Why Choose Us:
Product Details
| Product Name | High Chrome Steel Balls |
| Size range | Ø 50.72 mm – Ø 50.92 mm(GCr15/SUJ2/100Cr6/E52100) |
| Quality grades | G40 for balls diameter 50.72mm to 50.92mm |
| Hardness | HRc61-67 |
| Application | The High Quality Chrome Steel Balls are mainly applied in Deep Groove Ball Bearing, Angular Contact Ball Bearings, Thrust Ball Bearings, Wheel Hub Bearings, Linear Bearings,wind turbine bearing, slewing ring bearing and also the Bearing. |
Material Conversion
| Material | AISI | Federal | Military | ASTM | JIS | UNS | DIN |
| 52100 chrome | E52100 | FED-STD-66D | MIL-B-1083 | A295 | SUJ-2 | G-52986 | 100Cr6 |
