Product Details:
|
| Steel: | Alloy Steel,chrome Steel,high Carbon Steel, 100Cr6, SUJ2 | Grade: | G40 |
|---|---|---|---|
| Hardness: | HRc61-67 | Appearance: | Smooth, Bright, No Visible Flaws, High Quality |
| Use: | Ball Bearing, Slewing Ring Bearing, Precision Instruments | Standard: | DIN, ASTM, AISI, JIS, AFN |
| Characteristic: | High Precision, High Hardness,finest Quality | Free Sample: | Supply For You |
| Highlight: | Gcr15 Steel Balls For Ball Bearings,SUJ2 Steel Balls For Ball Bearings,39.588mm Steel Balls For Ball Bearings |
||

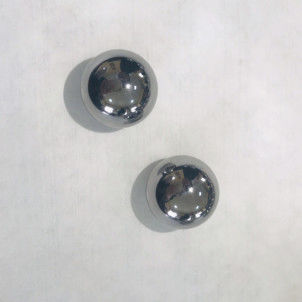

39.588mm(1.558583") Gcr15, SUJ2 Grade 40, High Precision Steel Ball For Bearing
Brief Introduction
Metal (Gcr15,100Cr6,52100,SUJ2) steel balls, also called bearing steel balls,High precision chrome (high carbon) steel balls contain chromium.They offer superior wear resistance, high hardness and high load bearing capacity as a result of through-hardening.
The finest quality chrome steel produced in accordance with the highest industry standards. These high precision G40 ball bearings are hot forged from bar stock. Modern furnaces with precisely controlled atmospheres and temperatures are used for heat treating to assure uniform hardness and proper microstructure for each Stainless steel ball.
Steel balls are important basic parts, especially precision industrial steel balls play a huge role in the development of the national economy. Under some special conditions, steel balls of special materials are often needed to fulfill the functions required under different environments.
Chrome balls are manufactured from the highest quality chrome alloy steel and through-hardened for maximum strength and service life. Applications that are ideal for chrome balls include tumbling media, ball bearings,Wind Turbine Bearing, linear motion components.most widely used in various industires.
Properties
Although these chromium steel balls have good rust resistance, but it is recommended to use a dry cloth to wipe clean after use and apply a layer of oil, so that they have better rust resistance, to extend their service life.
Besides the size of 39.6875mm, we make non-standard size, from 39.588mm to 39.80mm, such as grade and precision are met the requirements.
Service
After precision cleaning, oiling and before packing the sample balls in the batch, a final inspection is required to check the surface roughness, roundness, waviness, batch variation and hardness according to the specified control plan and inspection procedure. Inspection report is prepared for the customer once all the requirements are met.
Our products enjoy high evaluation and satisfaction among our customers. Most importantly, we can customize products to meet the various needs of customers. Based on customer's requirement, the steel balls can be produced according to Chinese standard GB/T 308, international standard ISO 3290, American standard ANSI/ABMA, German standard DIN, Japanese standard JIS B, etc.
Main Detailed Production
| Size |
39.588mm--39.80mm(1-5/9"--1-4/7") |
| Material | Gcr15,52100,100Cr6,SUJ2 |
| Grade | G40 |
| Application | high-speed and low-noise bearings, slide rails, universal balls |
| Details | Linear Bearing is a linear motion system which is using for the combination of linear travel and cylindrical shaft. As the steel ball directly contacts the bearing, the rolling of steel ball gets lowest friction resistance which can obtain the high sensitivity high accuracy smooth linear motion. The consumption of linear bearing also has its limitations. The principal one is impact load capacity and bear capacity are poor, besides, linear bearing produces high vibration and big noise in high speed movement. Linear bearing are widely used in the sliding parts of precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery. |
| Special properties | 1. High accuracy |
| 2. gloosy surface | |
| 3. high hardness | |
| 4. tolerance range is small | |
| 5. Can provide small and big size standard and non-standard steel ball. | |
| Service | OEM & ODM service |
| Delivery date | Normal have in stock within one week can be shipped. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% TT |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
