Product Details:
|
| Material: | High Chrome Steel, 100Cr6, SUJ2, 52100 | Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc 60-67 | Usage: | Big Ball Bearing And So On |
| Advantage: | Good Wear Resistance, Good Toughness | Free Samples: | The Free Samples Can Be Inspected |
| Surface: | High Polished, Grinding, No Breakage | Standard: | DIN, ASTM, AISI, JIS, AFN |
| High Light: | 50.72mm Large Diameter Steel Ball,50.92mm Large Diameter Steel Ball,G40 Large Diameter Steel Ball |
||

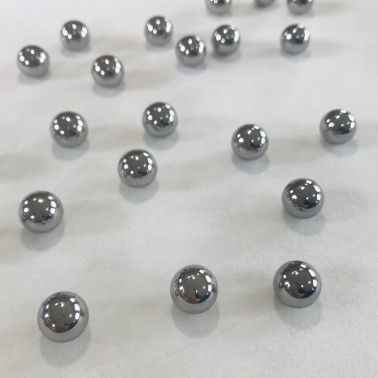

50.91mm(2.004331"), 50.72mm To 50.92mm , Large Solid Steel Balls For Big Bearing , G40
Introduction
GCr15 steel is a representative steel of high-carbon chromium bearing steel with good overall performance.the hardness is high and uniform, and the wear resistance and contact fatigue resistance are high, good thermal workability after quenching and tempering. After spheroidizing annealing, it has good workability, but it is sensitive to the formation of white spots.
Throughout the manufacturing process, statistical process control assures tolerance accuracy, fine surface finish and a consistent high quality. are the most widely used in the ball and roller bearing industry and for a variety of automobile applications.
Bearing steel balls have a long history of use in the precision bearing industry and life, and they are more widely used. It can be said that most of the places where there is rotation, there are steel balls, commonly known as steel balls and balls.
Mainly used in the manufacture of steel balls, rollers and bushings on drive shafts of internal combustion engines, electric locomotives, machine tools, tractors, steel rolling equipment, drilling machines, railway vehicles and mining machinery.
Steel balls are divided into grinding steel balls, forged steel balls, and cast steel balls according to the production process. According to the processing material, it is divided into bearing steel balls, stainless steel balls, carbon steel balls, copper bearing steel balls and alloy balls. Among them, the bearing steel ball is an important basic component of the industry, and the alloy steel ball is a spherical shape formed by forging, spinning, rolling and casting with carbon, chromium, manganese, molybdenum and other metal elements as the main added metal elements. Shaped ferroalloy wear-resistant body, it is the most important part of today's crushing industrial mine ball and cement ball.
The post-processing process of steel ball production, namely, automatic steel ball cleaning, automatic appearance inspection (automatically reject unqualified products), automatic rust prevention, counting and packaging, are all key to the quality of steel balls. Visual inspection of steel balls is an indispensable process in the processing of steel balls. The visual inspection of the steel ball mainly includes the inspection of surface scratches, rust and surface spots. Steel ball production process: stamping, flat grinding, quenching, hard grinding, appearance inspection, fine grinding, cleaning, rust prevention, finished product packaging.
We mainly produce chromium steel with a size of 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
Most importantly, we can customize our products to suit various needs of our customers.
Detailed Information
| Size | 50.83mm,50.85mm,50.86mm,50.88mm,50.90mm etc. |
| material | Gcr15,AISI52100,100Cr6,SUJ2 |
| Precision | G40 |
| Application | automobile, slewing ring bearing and also ball bearing,engineering machinery |
| Special properties | 1. High precision |
| 2. no grinding burn of surface | |
| 3. high hardness | |
| 4. Can be produced according customer requirement | |
| 5. Special types of balls supplied. | |
| Service | can provide free samples for checked, quantity and quality assured |
| Lead time |
Normal have in stock within one week can be shipped. It will take about 20 to 30 days can be shipped out of stock or depending on the order q'ty. |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
Advantage
Precision: they are roundness, high hardness and high accuracy, surface no crack.
Tolerance: ball dimensional tolerance, Deviation from Spherical Form, lot diameter variation, maximun surface roughness meet the standard.
Price: Small MOQ with competitive price.
Time of delivery:Fast delivery based on quality guaranteed.
| Precision / Grade |
Ball Diameter Tolerance Vdws(≤) µm |
Deviation from Spherical Form △Rs(≤) µm |
Maximun surface roughness Ra(≤)µm |
Lot diameter variation Dwl(≤) µm |
| G40 | 1.0 | 1.0 | 0.06 | 2 |
FAQ
Q: How about production time?
A: The steel balls are in stock can be shipped around one week. otherwise,it takes about 20-30 days.
Q: Do you provide the samples?
A: Yes, small quantity of free samples could be provided.
Q, Our packages?
A: Usually, we will be plastic bag into carton box, then packed in plywood pallets, it can also be customized.
