Product Details:
|
| Material: | GCr15, SUJ2, High Chrome, High Carbon | Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc61- 67 | Application: | Bearing Accessories |
| Surface: | Lapping, Polished, No Visible Flaws | Feature: | High Hardness, No Breakage,toughness,alloy Carbon Steel |
| Samples: | Can Be Supplied For Free | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| Highlight: | 44.38mm Round Metal Ball,G40 Round Metal Ball,100Cr6 Round Metal Ball |
||

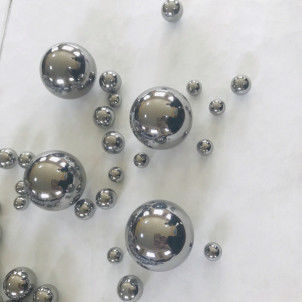

44.38mm(1.747244"), customized size, high chrome steel balls for bearing
Introduction
Chromium (Gcr15, 100Cr6, 52100, SUJ2) steel balls, also called bearing steel balls. The high-precision chromium steel ball contains chromium and has excellent surface quality and high bearing capacity due to being quenched.
Throughout the manufacturing process, statistical process control can ensure tolerance accuracy, good surface finish and consistent high quality. It is most widely used in the ball and roller bearing industry and various wind power applications.
This steel has general cold working plasticity, poor welding performance, and high sensitivity to the formation of white spots and temper brittleness.
Chrome steel balls in the 44.35mm to 44.57mm group are widely used in precision ball bearings and many other industrial applications. The chromium steel balls are hardened and have excellent surface quality, high hardness and high load carrying capacity. Chrome steel balls also have long life service and resistance to deformation.
The surface of our chrome steel balls is extremely precise and smooth, ensuring that no defects such as flatness, dents, soft spots and cuts will be found.
We mainly produce chrome steel with sizes ranging from 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn. Our balls are mainly used in the wind energy industry.
All standard balls are always in stock and ready for immediate off-the-shelf delivery. If your application calls for custom balls, send us your specifications and we‘ll gladly meet them.
Why Choose Us:
1. Special types of balls supplied.
2. Small MOQ with competitive price.
3. Fast delivery based on quality guaranteed.
4. Small quantity of free samples could be provided
5. Normal have in stock within one week can be shipped.
How to Order:
When ordering balls, please specify the following:
• Nominal ball diameter
• Type of material
• Grade
• Ball Gage (if applicable)
Product Details
| Product Name | High precision Chrome Steel Balls |
| Size range | Ø 44.35 mm – Ø 44.57 mm(GCr15/SUJ2/100Cr6/E52100) |
| Quality grades | G40 |
| Hardness | HRc61-67 |
| Application | The High Quality Chrome Steel Balls are mainly applied in Deep Groove Ball Bearing, Angular Contact Ball Bearings, Thrust Ball Bearings, Wheel Hub Bearings, Linear Bearings,wind turbine bearing, slewing ring bearing and also the Bearing. |
Material Conversion
| Material | AISI | Federal | Military | ASTM | JIS | UNS | DIN |
| 52100 chrome | E52100 | FED-STD-66D | MIL-B-1083 | A295 | SUJ-2 | G-52986 | 100Cr6 |
