Product Details:
|
| Material: | GCr15, 100Cr6 , High Chrome, High Carbon | Precision: | G40 |
|---|---|---|---|
| Hardness: | HRc61 To HRc67 | Application: | Ball Bearing And Kinds Of Industries |
| Surface: | Grinding, Polished, No Visible Flaws | Feature: | High Capacity And Fine Surface Finish, High Stress Fatigue Strength |
| Samples: | Can Be Supplied For Free | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| Highlight: | G40 Chromium Steel Balls,44.42mm Chromium Steel Balls,SUJ2 Chromium Steel Balls |
||

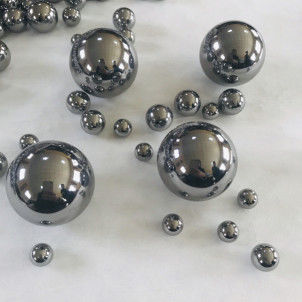

44.42mm(1.7488189"), customized size, high accuracy steel balls for bearing
Introduction
Chromium (Gcr15, 100Cr6, 52100, SUJ2) steel balls, also called bearing steel balls. The high-precision chromium steel ball contains chromium and has excellent surface quality and high load carrying capacity due to quenching.
Throughout the manufacturing process, statistical process control can ensure tolerance accuracy, good surface finish and consistent high quality. It is most widely used in the ball and roller bearing industry and various wind power applications.
This steel has general cold working plasticity, poor welding performance, and high sensitivity to the formation of white spots and temper brittleness.
The surface of our chrome steel balls is extremely precise and smooth, ensuring that no defects such as flatness, dents, soft spots and cuts will be found.Chrome steel balls also have long life service and resistance to deformation.
We mainly produce chrome steel with sizes ranging from 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn. Our balls are mainly used in the wind energy industry.
All standard balls are always in stock and ready for immediate off-the-shelf delivery. If your application calls for custom balls, send us your specifications and we‘ll gladly meet them.
Since the ball gage is the desired amount by which the lot mean diameter should differ from the nominal diameter, it must be expressed with the proper algebraic sign (+ or -).
Corrections to be added to Rockwell “C“ readings taken on the spherical surface for equivalent measure on parallel flats. These correction factors apply only to chrome and AISI-Type 440 stainless steel balls.
Hardness readings of balls taken on spherical surfaces are affected by the curvature and hardness of the ball. Because of these factors, corrections are necessarily added to the hardness read on ball surface to obtain the equivalent hardness on a flat surface.
Grade and tolerance (ABMA STD-10)
Why Choose Us:
1. Special types of balls supplied.
2. Small MOQ with competitive price.
3. Fast delivery based on quality guaranteed.
4. Small quantity of free samples could be provided
5. Normal have in stock within one week can be shipped.
Product Details
| Product Name | High Precision Chrome Steel Balls |
| Size range | Ø 44.35 mm – Ø 44.57 mm(GCr15/SUJ2/100Cr6/E52100) |
| Quality grades | G40 |
| Hardness | HRc61-67 |
| Application | The High Quality Chrome Steel Balls are mainly applied in Deep Groove Ball Bearing, Angular Contact Ball Bearings, Thrust Ball Bearings, Wheel Hub Bearings, Linear Bearings,wind turbine bearing, slewing ring bearing and also the Bearing. |
Mechanical Properties
Tensile Strength . . . . . . . . . . . . . . . . . . . . . . . . 325,000 psi
Yield Strength . . . . . . . . . . . . . . . . . . . . . . . . . . 295,000 psi
Elongation in two inches . . . . . . . . . . . . . . . . . . . . . . 5%
Reduction in area . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8%
Modulus of Elasticity . . . . . . . . . . . . . . . . . . 29,500,000 psi
Density . . . . . . . . . . . . . . . . . . . . . . . . . . .283 lb./cubic inch
Material Conversion
| Material | AISI | Federal | Military | ASTM | JIS | UNS | DIN |
| 52100 chrome | E52100 | FED-STD-66D | MIL-B-1083 | A295 | SUJ-2 | G-52986 | 100Cr6 |
