Product Details:
|
| Material: | High Chrome Steel, 100Cr6, SUJ2, 52100 | Accuracy: | G40 |
|---|---|---|---|
| Hardness: | HRc61 To HRc67 | Application: | Thrust Ball Bearing, Also Ball Bearing |
| Surface: | Grinding, Polished, No Crack | Feature: | High Capacity And Quality, High Stress Fatigue Strength |
| Samples: | Can Be Supplied For Free | Package: | Plastic Bag + Cardboard Box + Wooden Pallet |
| High Light: | 44.52mm Steel Ball For Bearing,G40 Steel Ball For Bearing,44.52mm China Steel Ball |
||
44.52mm(1.752756"), Customized Size, High Quality Chrome Steel Balls For Bearing
Profile
GCr15 bearing steel is a kind of high carbon chromium bearing steel with less alloy content, good performance and the most widely used. After quenching and tempering, it has high and uniform hardness (higher hardness, uniform structure), good wear resistance, and high contact fatigue performance. The steel has medium cold working plasticity, general cutting performance, poor welding performance, high sensitivity to the formation of white spots, and temper brittleness. GCr15 bearing steel, containing C0.95-1.05, Mn0.25-0.45, Si0.15-0.35, S≤0.025, P≤0.025, Cr 1.40-1.65, Mo≤0.10, Ni≤0.30, Cu≤0.25, Ni+ Cu≤0.50.
From the perspective of application categories, steel balls can be divided into two categories: wear-resistant steel balls in the crushing industry and bearing steel balls in the precision bearing industry.
Bearing steel balls have a long history of use in the precision bearing industry and life, and they are more widely used. It can be said that most of the places where there is rotation, there are steel balls, commonly known as steel balls and balls. Steel ball is a general term for steel ball, steel segment and special-shaped grinding body. According to the appearance, it can be divided into a round ball (general narrowly defined name), capsule ball, elliptical ball, hollow ball, multi-faceted ball, multiple missing ball (with dimples on the surface), etc.
Steel balls are widely used in bearings, hardware, electronics, mechanical equipment, electric power, mining, metallurgy and other fields.
We mainly produce chrome steel with sizes ranging from 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
Most importantly, we can customize products to meet the various needs of customers.

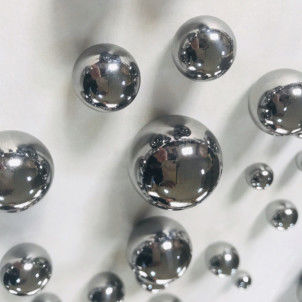

Solid Chrome Steel Balls
Modern furnaces with precisely controlled atmospheres and temperatures are used for heat treating to assure uniform hardness and proper microstructure for each steel ball.
Ball hardness is controlled within the 60-63 HRC range as measured on parallel flat surfaces.
Bearing balls are used in automotive applications, for semi-precision bearings, and in commercial applications.
Advantage
Product Details
| Product Name | High Precision Chrome Steel Balls |
| Size range | Ø 44.35 mm – Ø 44.57 mm(GCr15/SUJ2/100Cr6/E52100) |
| Quality grades | G40 |
| Hardness | HRc61-67 |
| Application | The High Quality Chrome Steel Balls are mainly applied in Deep Groove Ball Bearing, Angular Contact Ball Bearings, Thrust Ball Bearings, Wheel Hub Bearings, Linear Bearings,wind turbine bearing, slewing ring bearing and also the Bearing. |
| Special properties | 1. High accuracy |
| 2. no defects of surface | |
| 3. high hardness | |
| 4. Can be produced according customer requirement | |
| 5. Can provide small and big size standard and non-standard steel ball. | |
| Service | can provide free samples for checked, quantity and quality assured |
| Lead time | Normal have in stock within one week can be shipped. |
| It will take about 20 to 30 days can be shipped out of stock or depending on the order q'ty. | |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
