Product Details:
|
| Material: | Chrome Steel,high Carbon Steel, GCr15, SUJ2 | Grade: | G28 |
|---|---|---|---|
| Hardness: | HRc61 To HRc67 | Surface: | Lapping, Bright, High Polished |
| Usage: | Ball Bearing, Mechanical Equipment | Standard: | DIN, ASTM, AISI, JIS, AFN |
| Feature: | Smooth, Anti-wear, Corrosion Resistance | Free Sample: | Provide For Free |
| High Light: | E52100 High Chrome Steel Ball,34.10mm Steel Ball For Bearing,35.1mm Steel Ball For Bearing |
||

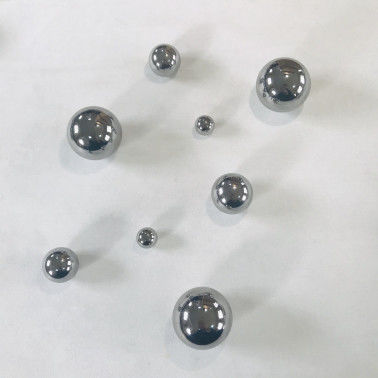

35.00mm(1.3779527"), 34.10mm,34.2mm,34.4mm to 35.1mm, High Chrome Steel Ball For Bearing, E52100
Introduction
Steel balls are divided into grinding steel balls, forged steel balls, and cast steel balls according to the production process. According to the processing material, it is divided into bearing steel balls, stainless steel balls, carbon steel balls, copper bearing steel balls and alloy balls. Among them, the bearing steel ball is an important basic component of the industry, and the alloy steel ball is a spherical shape formed by forging, spinning, rolling and casting with carbon, chromium, manganese, molybdenum and other metal elements as the main added metal elements. Shaped ferroalloy wear-resistant body, it is the most important part of today's crushing industrial mine ball and cement ball.
Bearing steel balls have a long history of use in the precision bearing industry and life, and they are more widely used. It can be said that most of the places where there is rotation, there are steel balls, commonly known as steel balls and balls.
The chromium ball is made of the highest quality chromium alloy steel and is quenched to achieve maximum strength and service life. Ideal applications for chrome balls include rolling media, spray tank mixing, ball bearings, wind turbine bearings, and linear motion components. The most widely used in various industires.
Although these chrome steel balls have good anti-rust properties, it is recommended to wipe them clean with a dry cloth and apply a layer of oil after use to make them have better anti-rust properties and extend their service life.
Our products enjoy a highly appreciated and satisfiied among our customers. Most importantly, we can customize our products to suit various needs of our customers. Based on customer’s requirement, the steel balls could be produced according to China Standard GB/T 308, International Standard ISO 3290, America Standard ANSI/ABMA, Germany Standard DIN 5401, Japan Standard JIS B 1501 etc.
High Precision bearing (chrome) steel ball
| Application |
Suitable for many industrial applications, such as ball bearings, household appliances, automotive industry, mechanical equipments, mining, metallurgy, wind power like large rotary bearings (rotary disk bearings), wind power bearings such as yaw bearings, variable blade bearings, etc., |
| Raw Material | Gcr15,Gcr15SiMn,100Cr6 etc. |
| Size Range | Ø 15.875 mm - Ø 50 mm (GCr15 ) |
| Ø 50 mm - Ø 82.55 mm (GCr15SiMn ) | |
| Grade | G10-200 (G 10, G 16, G 20, G 24, G 28, G 40, G 60, G 100, G 200) |
| Hardness | 58-67HRC |
| Feature | (a)Mainly used in bearings |
| (b)Good hardness | |
| (c)Good resistance to deformation with excellent wear resistance | |
| (d)High precision | |
| Magnetic | Yes |
| Packing |
Dry or oiled. Standard export packing: 10kg or 20kg per carton,1 ton per pallet or as per customer's requirement. Refer to related pictures. |
| Time of delivery | The steel balls are in stock can be shipped around one week. otherwise,it takes about 20-30 days. |
| 20~45 days according to the order quantity. |
